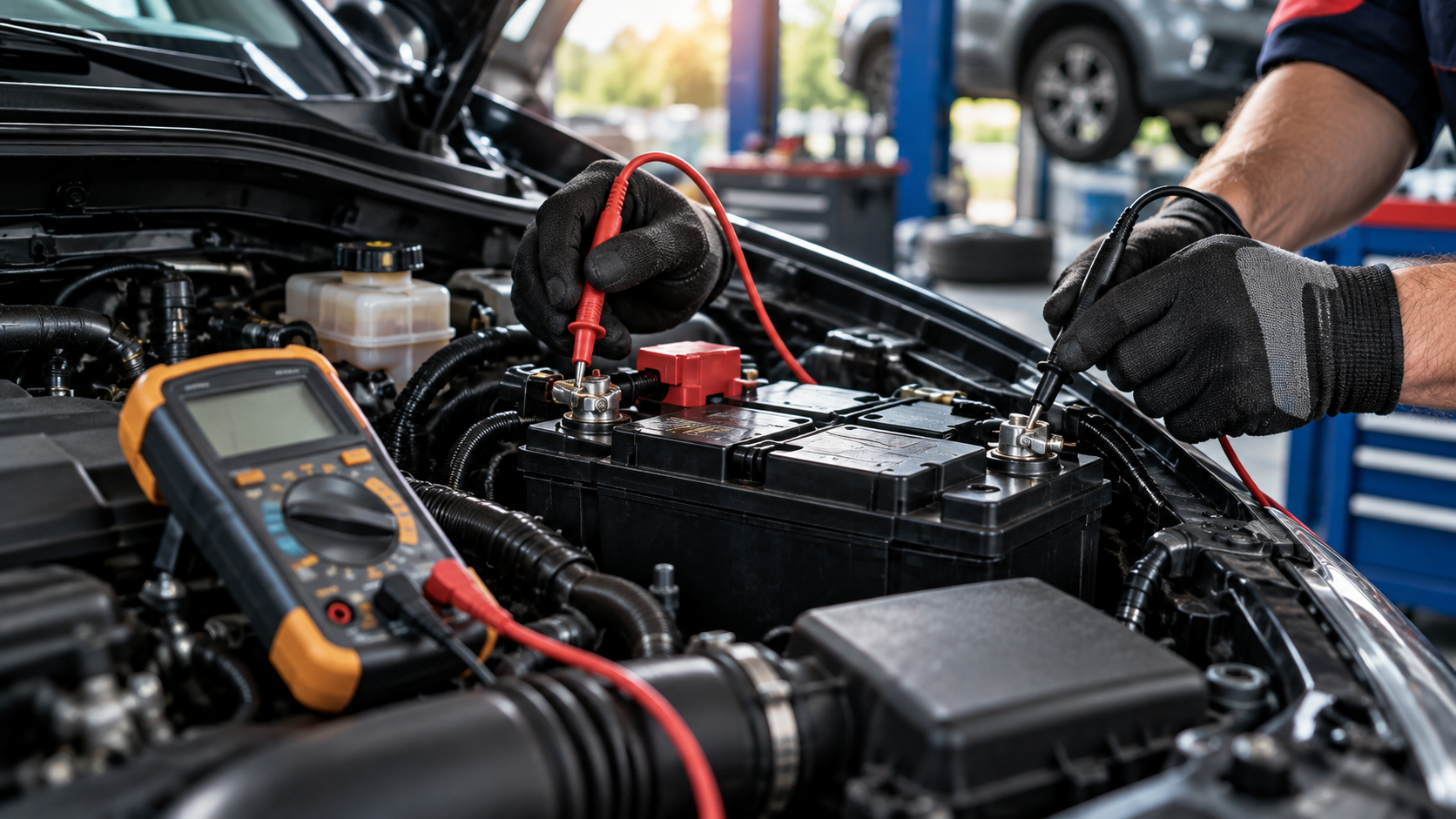

You put a multimeter on your car battery and the screen says 12.4 volts. Sounds close enough to 12, right? Then you start the engine and suddenly the meter shows 14.2 volts. Now it looks too high.
This is where car battery numbers can get confusing.
If you’re wondering how many volts should a car battery have, a healthy, fully charged conventional 12-volt lead-acid battery will commonly measure around 12.6 to 12.8 volts after the car has been sitting with the engine off. Once the engine is running, many traditional charging systems operate somewhere around 13.5 to 14.8 volts.
But there is an important catch. Newer vehicles often have computer-controlled charging systems, so running voltage may move around much more than it did on older cars.
One reading also cannot tell you everything about battery health. A battery can show 12.6 volts while parked and still struggle badly when the starter asks for serious current.
So, yes, the voltage matters. The situation in which you measure it matters just as much.
Why Does a 12-Volt Battery Read More Than 12 Volts?
The term “12-volt battery” describes its nominal voltage. It does not mean a healthy battery should always sit at exactly 12.0 volts.
A standard automotive lead-acid battery has six cells connected together. Each fully charged cell produces a little over 2 volts, giving you a resting battery voltage in the neighborhood of 12.6 volts or slightly higher.
So if you test a battery that has rested for several hours and see 12.7 volts, that is not excessive. It is generally a good sign.
On the other hand, exactly 12.0 volts is not “perfect because it’s a 12-volt battery.” A conventional battery sitting at 12.0 volts is significantly discharged.
That’s one of those automotive details that sounds backwards until you know how the battery works.
Normal Car Battery Voltage at a Glance
| Battery Condition | Typical Voltage | What It Usually Means |
|---|---|---|
| Engine off, fully charged and rested | About 12.6-12.8 V | Healthy state of charge |
| Engine off, partially discharged | About 12.4 V | Battery is not fully charged |
| Engine off, significantly discharged | About 12.2 V | Charging is recommended |
| Engine off, heavily discharged | Around 12.0 V or lower | Starting may become unreliable |
| During cranking | Voltage drops temporarily | A large drop can point to battery or starting-system trouble |
| Engine running | Often about 13.5-14.8 V | Charging system is supplying the electrical system |
These are general reference numbers, not hard limits for every vehicle. Battery type, temperature, recent charging, electrical load, and the car’s charging strategy all affect what you see.
What Should the Voltage Be With the Engine Off?
This is the easiest measurement to understand.
For a conventional 12-volt lead-acid starting battery that is fully charged and has had time to rest, around 12.6 to 12.8 volts is a healthy general range.
If you see around 12.4 volts, the battery is partially discharged but may still start the vehicle normally.
A reading around 12.2 volts means the state of charge is getting low enough that you should pay attention. And once you’re around 12.0 volts or lower, the battery is heavily discharged compared with its normal fully charged condition.
That still does not automatically mean the battery needs replacement.
Maybe the car sat for two weeks. Maybe you left an interior light on. Maybe your commute consists of five-minute trips and the charging system never gets enough time to replenish the energy used during starting.
The battery could simply need a proper charge.
When Is the Best Time to Measure Battery Voltage?
Testing right after a long drive can make a battery look slightly healthier than it really is because of surface charge.
For a useful resting measurement, let the vehicle sit with the engine off and electrical accessories turned off.
Several hours is good. Overnight is even easier.
If you check first thing in the morning before starting the car, you are usually getting a much more useful picture of resting battery voltage.
Recent charging matters. So does temperature.
A cold battery does not behave exactly like a warm one, which is why professional testing often takes battery temperature into account.
How to Check Car Battery Voltage With a Multimeter
You do not need complicated equipment for a basic voltage check. A digital multimeter is enough.
- Park the vehicle safely and turn off the engine.
- Switch off headlights, climate control, and other accessories.
- Set the multimeter to DC volts.
- Touch the red probe to the positive battery terminal.
- Touch the black probe to the negative battery terminal.
- Read the number on the display.
- Start the engine and test again if you also want to check charging-system voltage.
If your meter shows a negative number, don’t panic. The probes are simply reversed.
Be careful around the battery terminals. A metal object that bridges the positive terminal to ground can create a serious short circuit.
Is 12.6 Volts a Good Car Battery Reading?
Yes. If the engine is off and the battery has rested, about 12.6 volts is generally a healthy reading for a conventional lead-acid battery.
But here’s the part people often miss: 12.6 volts tells you mainly that the battery has charge.
It does not guarantee that the battery can deliver enough current to crank the engine properly.
An old battery can sit calmly at 12.6 volts with no load and then drop sharply when the starter motor engages.
Think of it like a water tank with a clogged outlet. The tank may look full, but that does not mean it can deliver enough flow when you suddenly need a lot of water.
That is why battery shops and repair garages test more than open-circuit voltage.
What Does 12.4 Volts Mean?
About 12.4 volts usually means a conventional lead-acid battery is partially charged.
The car may start completely normally. You may notice no symptoms at all.
One reading at 12.4 volts is not automatically a problem.
But if the battery always settles near 12.4 volts, even after substantial driving or proper charging, it is worth checking further.
You might have an aging battery, a charging issue, lots of short trips, or an electrical draw while the car is parked.
Is 12.2 Volts Too Low?
It is low enough to deserve attention.
A conventional lead-acid battery around 12.2 volts after resting is substantially discharged. In mild weather, the engine might still start without any drama.
Then a cold morning arrives and suddenly you hear slow cranking.
That happens because low temperature makes things harder in two directions. The battery delivers less available power, while the cold engine can require more effort to turn.
If you find 12.2 volts repeatedly, recharge the battery and see whether it holds the charge.
Can a Car Start at 12.0 Volts?
Sometimes.
A car battery at about 12.0 volts may still crank an engine, particularly if the weather is warm and the battery still has decent starting capacity.
But that is not a healthy fully charged state.
A battery that regularly rests around 12.0 volts needs attention even if the vehicle still starts.
Waiting until it completely refuses to turn the engine is not a great maintenance strategy.
What Should Battery Voltage Be While Starting?
The battery has its hardest job when you turn the key or press the start button.
The starter motor can demand a very large amount of current, so battery voltage drops during cranking.
That drop is normal.
Under traditional battery load-test conditions, about 9.6 volts is a commonly referenced minimum around room temperature. Real-world cranking voltage varies with temperature, battery size, engine size, starter condition, and testing method.
In practical terms, you are looking for a pattern.
If the battery starts around 12.6 volts, drops sharply while the starter barely turns, and then recovers once you stop trying, the battery or high-current connections need closer inspection.
What Should Car Battery Voltage Be With the Engine Running?
For many older and conventional vehicles, a running voltage somewhere around 13.5 to 14.8 volts is normal.
The alternator needs to supply the vehicle’s electrical systems and recharge the battery, so voltage rises above the battery’s normal resting level.
This is why seeing 14.2 volts with the engine running is usually good, not alarming.
But newer cars complicate the picture.
Modern smart charging systems can deliberately reduce or increase alternator output. You might see voltage in the 12-volt range during certain driving conditions and significantly higher readings at other times.
That does not automatically mean the alternator is failing.
Why Modern Cars Don’t Always Stay at 14 Volts
Older alternators were relatively straightforward. The engine ran, the alternator charged, and a voltmeter often hovered somewhere near 14 volts.
Many newer vehicles manage charging electronically.
The computer can change alternator output based on:
- Battery state of charge
- Battery temperature
- Electrical demand
- Engine operating conditions
- Acceleration or deceleration
- Energy-management strategy
- Start-stop operation
The voltage can move around on purpose.
So if you own a newer vehicle, do not replace an alternator just because the meter did not show exactly 14.0 volts during one quick test.
Battery Voltage vs. State of Charge
| Approximate Resting Voltage | General Charge Condition | Practical Interpretation |
|---|---|---|
| 12.7 V | Fully or nearly fully charged | Normal for a healthy rested battery |
| 12.5 V | Good but not completely full | Usually no immediate concern |
| 12.4 V | Partially discharged | Watch the trend |
| 12.2 V | Significantly discharged | Recharge and investigate if repeated |
| 12.0 V | Heavily discharged | Starting reliability may suffer |
| Below 12.0 V | Very discharged | Battery may require charging and testing |
Those percentages and voltage relationships are approximate. They vary with battery chemistry, temperature, battery age, and how long the battery has rested.
The table is useful as a quick reference, not as a final diagnosis.
Can a Bad Battery Still Read 12.6 Volts?
Absolutely.
This is one of the reasons people replace alternators they did not need or assume a battery is fine when it really isn’t.
A voltmeter applies almost no meaningful load to the battery.
A starter motor is a completely different story.
The battery can have enough charge to display 12.6 volts but not enough usable capacity to supply the high current required for starting.
That is where a battery load test or electronic conductance test becomes useful.
Signs Voltage Isn’t the Whole Story
Pay attention to how the car behaves, not just the number on the meter.
- The starter turns noticeably slower than before.
- The car occasionally needs a jump start.
- Headlights dim heavily while starting.
- The engine struggles to start after sitting overnight.
- The battery goes flat again soon after being charged.
- Electrical systems reset during startup.
- The battery or charging warning appears on the dashboard.
- Battery terminals are loose or heavily corroded.
- The battery case looks swollen, cracked, or damaged.
If several of these symptoms show up together, a proper battery and charging-system test is more useful than repeatedly checking resting voltage.
What Voltage Is Too Low for a Car Battery?
There is no universal number where every car instantly stops starting.
But below about 12.0 volts after resting, a conventional 12-volt lead-acid battery is seriously discharged.
A reading around 10.5 volts can be particularly concerning. It may occur with severe discharge, and it can also be associated with an internal cell problem.
Do not diagnose a bad cell from one number alone.
Charge the battery correctly and test it afterward.
If it cannot hold a proper charge, then replacement becomes much more likely.
What Voltage Is Too High?
High voltage matters too.
On many conventional charging systems, sustained voltage well above the normal mid-14-volt area may signal a charging-system problem.
A reading around 15 volts or higher deserves investigation on many vehicles, especially if it stays there.
But vehicle design matters.
Some modern systems intentionally operate at higher charging voltages under particular conditions, especially with certain battery types and cold temperatures.
The more concerning situation is unusually high voltage combined with other symptoms such as battery overheating, a strong sulfur-like smell, electrical problems, or charging-system warnings.
Why Cold Weather Exposes Weak Batteries
Few things reveal a tired battery faster than the first freezing morning of the season.
At lower temperatures, a battery’s chemical reactions slow down. That reduces the power available for starting.
At the same time, cold engine oil and cold mechanical components can make the engine harder to crank.
So the battery has less available performance while the starter needs more.
This is why a car may start normally throughout summer and suddenly struggle in December.
Heat Can Shorten Battery Life Too
Cold weather gets the blame for battery failure because that’s when the car often refuses to start.
But heat can do plenty of damage behind the scenes.
High temperatures speed up chemical reactions inside a lead-acid battery and can contribute to faster internal deterioration.
Drivers in hot regions of the U.S. can therefore experience relatively short battery life even though freezing-weather starting is rarely an issue.
The damage may happen during summer and become obvious later.
Why Short Trips Can Keep Battery Voltage Low
Every engine start removes energy from the battery.
The charging system needs time to put that energy back.
If your typical trip is five minutes to school, five minutes to the grocery store, then five minutes home, the battery may spend much of its life partly discharged.
Add heated seats, climate control, lights, phone charging, windshield heaters, and other electrical loads, and the situation becomes even less favorable.
A longer drive can help, but a deeply discharged battery may be better restored with a proper battery charger.
What Happens After a Jump Start?
A successful jump start proves one thing: external electrical power helped start the engine.
It does not prove the battery is healthy.
It also does not tell you why the battery became discharged.
Maybe you left the lights on. Maybe the battery is old. Perhaps the alternator isn’t charging correctly. Or maybe something in the vehicle is draining power while it sits.
After a jump start, check the charging system and test the battery once it has been properly recharged.
If you need another jump the next morning, something clearly remains unresolved.
Could the Alternator Be the Real Problem?
Yes.
The battery starts the car. Once the engine is running, the charging system supplies electricity and restores energy to the battery.
If the alternator does not charge properly, even a brand-new battery will eventually become discharged.
Possible signs of a charging-system problem include a battery warning light, repeated dead batteries, dim lighting, electrical malfunctions, or abnormal running voltage.
But modern smart charging means a simple low running-voltage reading does not always prove alternator failure.
Vehicle-specific testing matters.
Could a Parasitic Drain Be Causing Low Voltage?
If the battery is charged at night and mysteriously weak the next morning, the issue might not be the battery itself.
A vehicle continues to draw a small amount of current after you shut it off. Security systems, memory circuits, keyless-entry receivers, telematics modules, and other electronics need some power.
That is normal.
A problem occurs when something keeps drawing substantially more power than it should.
A glove-box light may stay on. An aftermarket accessory may remain active. A control module may refuse to enter sleep mode.
Voltage can tell you that the battery has lost charge. It cannot tell you which circuit caused the loss.
That requires a parasitic-current test.
Do Corroded Battery Terminals Affect Starting?
Very much so.
This is another reason a good battery voltage does not automatically mean everything is fine.
You may measure 12.6 volts directly across the battery posts, but badly corroded terminals can restrict the current flowing to the starter.
The result can look exactly like a weak battery: slow cranking, clicking, or no start.
Loose connections can cause the same thing.
A voltage-drop test across the battery cables and ground connections while cranking can reveal resistance that a simple resting-voltage measurement misses.
What About AGM Car Batteries?
AGM, or absorbed glass mat, batteries are common in newer cars, especially vehicles with automatic stop-start systems or high electrical demand.
A fully charged AGM battery may have a resting voltage slightly higher than a traditional flooded battery.
More importantly, an AGM-equipped vehicle may require another AGM battery when replacement time comes.
Do not assume that any battery with the correct physical dimensions is suitable.
Battery technology, capacity, cold-cranking rating, and vehicle charging strategy all matter.
Can Installing the Wrong Battery Cause Voltage Problems?
It can.
Some newer vehicles have battery-management systems that are designed around a particular battery technology and capacity.
If the car originally uses an AGM battery and someone installs a cheaper conventional flooded battery, the replacement may not respond well to the vehicle’s charging strategy.
Some cars also require battery registration or adaptation after replacement.
This tells the vehicle that a new battery has been installed so charging management can account for its age and condition.
Start-Stop Cars Need More From Their Batteries
Automatic stop-start systems can restart the engine many times during a normal trip.
That places much more demand on the low-voltage battery than a traditional car that starts once and keeps the engine running until you reach your destination.
These vehicles commonly use AGM or enhanced flooded batteries and more advanced battery monitoring.
They can also show charging voltages that look unusual if you are comparing them with an older car.
What About Hybrid and Electric Vehicles?
Hybrids and EVs often have a separate low-voltage battery in addition to the high-voltage traction battery.
That smaller battery powers control electronics, locks, lights, computers, and systems that allow the vehicle to enter its ready state.
A weak low-voltage battery can therefore cause strange electrical symptoms even when the large traction battery has plenty of charge.
But do not confuse the two systems.
High-voltage hybrid and EV batteries require specialized safety procedures. Routine 12-volt testing does not apply to the high-voltage traction pack.
How Often Should You Check Battery Voltage?
You do not need to walk around with a multimeter every weekend.
For most drivers, checking when you notice starting changes is enough.
It can also make sense to test before winter, before a long road trip, after the battery has been deeply discharged, or when the battery is several years old.
If you rarely drive the vehicle, occasional testing is more useful because batteries slowly discharge even while parked.
When Should You Have the Battery Professionally Tested?
A professional test makes sense when the battery repeatedly goes flat, cranking is slow, voltage drops heavily during starting, or the battery has reached an age where reliability is becoming questionable.
Many parts stores and repair shops can test both battery condition and charging-system performance.
A proper tester can provide information that your multimeter cannot, particularly about the battery’s ability to deliver starting current.
FAQ
How many volts should a car battery have when the engine is off?
A fully charged conventional 12-volt lead-acid battery commonly measures around 12.6 to 12.8 volts after it has rested. Battery type, temperature, and recent charging can shift the exact number.
Is 12.4 volts okay for a car battery?
Yes, the car may still start normally, but 12.4 volts generally means the battery is only partially charged. If it repeatedly rests there, check charging habits and battery condition.
Is 12.2 volts too low to start a car?
Some cars will still start at 12.2 volts, but the battery is significantly discharged. Recharge it and investigate if the low reading keeps returning.
What should battery voltage be while the engine is running?
Many conventional charging systems operate roughly around 13.5 to 14.8 volts. Newer computer-controlled systems can vary more, so the correct range depends on the vehicle.
Can a bad battery show 12.6 volts?
Yes. A worn battery can have normal resting voltage but lose voltage badly under the heavy load of the starter. A load or conductance test gives a better picture of actual battery health.
Is 15 volts too high for a car battery?
Sustained voltage around 15 volts or higher can be abnormal on many conventional vehicles, but some modern charging systems may temporarily operate differently. Check the specifications for the vehicle before diagnosing overcharging.
What voltage means a car battery is dead?
There is no single universal number, but a resting voltage below about 12.0 volts indicates a heavily discharged conventional battery. A reading near 10.5 volts can point to severe discharge or an internal battery issue and deserves further testing.
Conclusion
If you only remember one number, remember 12.6 volts.
For a conventional fully charged 12-volt car battery that has been allowed to rest, roughly 12.6 to 12.8 volts is a useful normal reference.
But the real answer to how many volts should a car battery have depends on when you measure it.
Engine off? Around 12.6 volts is reassuring.
Starting the engine? Expect voltage to drop temporarily.
Engine running? Many traditional charging systems rise into roughly the 13.5 to 14.8-volt area.
And on a newer vehicle with smart charging, the reading may move around far more than those old-school rules suggest.
That is why context matters.
A single 12.4-volt reading does not condemn a battery. Neither does one unusual running-voltage reading prove the alternator is failing.
Look at the pattern.
If the battery rests around 12.6 volts, the engine cranks strongly, and the charging system behaves normally, things are probably fine.
If the battery sits around 12.1 or 12.2 volts every morning, something deserves attention.
Charge the battery properly, let it rest, and measure again.
If the voltage falls quickly, the battery may no longer hold charge well, or the car may have an excessive electrical draw while parked.
If resting voltage looks great but the starter turns slowly, do not stop your diagnosis there. Battery capacity, terminal connections, ground cables, and starter condition can all matter.
And if running voltage seems low, remember that modern charging systems are not always supposed to sit at a fixed 14 volts.
Check what is normal for the actual vehicle.
The multimeter is useful because it gives you clues quickly. It can tell you whether the battery is charged, whether voltage collapses while starting, and whether the charging system appears active.
What it cannot do by itself is certify that the battery is healthy.
For that, you may need a proper battery test under load.
Also pay attention to the physical battery.
A swollen case, cracks, leaking electrolyte, excessive heat, or a strong sulfur-like smell is more important than getting the voltage number exactly right.
A damaged battery should be handled cautiously and inspected rather than repeatedly charged and tested at home.
In day-to-day ownership, you do not need to obsess over every tenth of a volt.
What matters is whether the battery remains charged, starts the vehicle confidently, and works with a charging system that is functioning as designed.
Check the number, watch the trend, and pay attention to how the car actually behaves.
That combination tells you far more than any single voltage reading ever will.
Leave a Reply
